Build an AI agent based on biocyphs for the generation of biomedical knowledge graphics and the question

by Brenden Burgess

When you buy through links on our site, we may earn a commission at no extra cost to you. However, this does not influence our evaluations.

In this tutorial, we implement the agent Biocypher ai, a powerful tool designed to build, question and analyze biomedical knowledge graphics using the biocyphic framework. By combining the forces of BiocypherAn interface based on high performance scheme for the integration of biological data, with the flexibility of Networkx, this tutorial allows users to simulate complex biological relations such as gene regulatory associations, drug -target interactions and the involvement of the track. The agent also includes capacities to generate synthetic biomedical data, visualize knowledge graphics and perform intelligent requests, such as centrality analysis and neighbors' detection.

!pip install biocypher pandas numpy networkx matplotlib seaborn


import pandas as pd
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt
import json
import random
from typing import Dict, List, Tuple, Any

We start by installing the essential Python libraries required for our analysis of biomedical graphics, including Biocypher, Pandas, Numpy, Networkx, Matplotlib and Seaborn. These packages allow us to manage data, create and manipulate knowledge graphics and effectively visualize relationships. Once installed, we import all the modules necessary to configure our development environment.

try:
   from biocypher import BioCypher
   from biocypher._config import config
   BIOCYPHER_AVAILABLE = True
except ImportError:
   print("BioCypher not available, using NetworkX-only implementation")
   BIOCYPHER_AVAILABLE = False

We are trying to import the biocyphe frame, which provides an interface based on the diagram to manage biomedical knowledge graphics. If the import is successful, we allow biocypher's features; Otherwise, we graciously fall back to a networkx mode only, ensuring that the rest of the analysis can always take place without interruption.

class BiomedicalAIAgent:
   """Advanced AI Agent for biomedical knowledge graph analysis using BioCypher"""

   def __init__(self):
       if BIOCYPHER_AVAILABLE:
           try:
               self.bc = BioCypher()
               self.use_biocypher = True
           except Exception as e:
               print(f"BioCypher initialization failed: {e}")
               self.use_biocypher = False
       else:
           self.use_biocypher = False

       self.graph = nx.Graph()
       self.entities = {}
       self.relationships = ()
       self.knowledge_base = self._initialize_knowledge_base()

   def _initialize_knowledge_base(self) -> Dict(str, List(str)):
       """Initialize sample biomedical knowledge base"""
       return {
           "genes": ("BRCA1", "TP53", "EGFR", "KRAS", "MYC", "PIK3CA", "PTEN"),
           "diseases": ("breast_cancer", "lung_cancer", "diabetes", "alzheimer", "heart_disease"),
           "drugs": ("aspirin", "metformin", "doxorubicin", "paclitaxel", "imatinib"),
           "pathways": ("apoptosis", "cell_cycle", "DNA_repair", "metabolism", "inflammation"),
           "proteins": ("p53", "EGFR", "insulin", "hemoglobin", "collagen")
       }

   def generate_synthetic_data(self, n_entities: int = 50) -> None:
       """Generate synthetic biomedical data for demonstration"""
       print("🧬 Generating synthetic biomedical data...")

       for entity_type, items in self.knowledge_base.items():
           for item in items:
               entity_id = f"{entity_type}_{item}"
               self.entities(entity_id) = {
                   "id": entity_id,
                   "type": entity_type,
                   "name": item,
                   "properties": self._generate_properties(entity_type)
               }

       entity_ids = list(self.entities.keys())
       for _ in range(n_entities):
           source = random.choice(entity_ids)
           target = random.choice(entity_ids)
           if source != target:
               rel_type = self._determine_relationship_type(
                   self.entities(source)("type"),
                   self.entities(target)("type")
               )
               self.relationships.append({
                   "source": source,
                   "target": target,
                   "type": rel_type,
                   "confidence": random.uniform(0.5, 1.0)
               })

We define the biomedicing class as a basic engine to analyze biomedical knowledge graphics using biocypher. In the manufacturer, we check if biocypher is available and initialize it if possible; Otherwise, we have by default a networkx approach only. We have also set up our basic structures, including an empty graph, dictionaries for entities and relationships, and a predefined biomedical knowledge base. We then use Generate_Synthetic_Data () to fill this graph with realistic biological entities, such as genes, diseases, drugs and ways, and simulate their interactions by relations generated randomly but biologically significant.

  def _generate_properties(self, entity_type: str) -> Dict(str, Any):
       """Generate realistic properties for different entity types"""
       base_props = {"created_at": "2024-01-01", "source": "synthetic"}

       if entity_type == "genes":
           base_props.update({
               "chromosome": f"chr{random.randint(1, 22)}",
               "expression_level": random.uniform(0.1, 10.0),
               "mutation_frequency": random.uniform(0.01, 0.3)
           })
       elif entity_type == "diseases":
           base_props.update({
               "prevalence": random.uniform(0.001, 0.1),
               "severity": random.choice(("mild", "moderate", "severe")),
               "age_of_onset": random.randint(20, 80)
           })
       elif entity_type == "drugs":
           base_props.update({
               "dosage": f"{random.randint(10, 500)}mg",
               "efficacy": random.uniform(0.3, 0.95),
               "side_effects": random.randint(1, 10)
           })

       return base_props


   def _determine_relationship_type(self, source_type: str, target_type: str) -> str:
       """Determine biologically meaningful relationship types"""
       relationships_map = {
           ("genes", "diseases"): "associated_with",
           ("genes", "drugs"): "targeted_by",
           ("genes", "pathways"): "participates_in",
           ("drugs", "diseases"): "treats",
           ("proteins", "pathways"): "involved_in",
           ("diseases", "pathways"): "disrupts"
       }

       return relationships_map.get((source_type, target_type),
                                  relationships_map.get((target_type, source_type), "related_to"))


   def build_knowledge_graph(self) -> None:
       """Build knowledge graph using BioCypher or NetworkX"""
       print("🔗 Building knowledge graph...")

       if self.use_biocypher:
           try:
               for entity_id, entity_data in self.entities.items():
                   self.bc.add_node(
                       node_id=entity_id,
                       node_label=entity_data("type"),
                       node_properties=entity_data("properties")
                   )

               for rel in self.relationships:
                   self.bc.add_edge(
                       source_id=rel("source"),
                       target_id=rel("target"),
                       edge_label=rel("type"),
                       edge_properties={"confidence": rel("confidence")}
                   )
               print("✅ BioCypher graph built successfully")
           except Exception as e:
               print(f"BioCypher build failed, using NetworkX only: {e}")
               self.use_biocypher = False

       for entity_id, entity_data in self.entities.items():
           self.graph.add_node(entity_id, **entity_data)

       for rel in self.relationships:
           self.graph.add_edge(rel("source"), rel("target"),
                             type=rel("type"), confidence=rel("confidence"))

       print(f"✅ NetworkX graph built with {len(self.graph.nodes())} nodes and {len(self.graph.edges())} edges")


   def intelligent_query(self, query_type: str, entity: str = None) -> Dict(str, Any):
       """Intelligent querying system with multiple analysis types"""
       print(f"🤖 Processing intelligent query: {query_type}")

       if query_type == "drug_targets":
           return self._find_drug_targets()
       elif query_type == "disease_genes":
           return self._find_disease_associated_genes()
       elif query_type == "pathway_analysis":
           return self._analyze_pathways()
       elif query_type == "centrality_analysis":
           return self._analyze_network_centrality()
       elif query_type == "entity_neighbors" and entity:
           return self._find_entity_neighbors(entity)
       else:
           return {"error": "Unknown query type"}


   def _find_drug_targets(self) -> Dict(str, List(str)):
       """Find potential drug targets"""
       drug_targets = {}
       for rel in self.relationships:
           if (rel("type") == "targeted_by" and
               self.entities(rel("source"))("type") == "genes"):
               drug = self.entities(rel("target"))("name")
               target = self.entities(rel("source"))("name")
               if drug not in drug_targets:
                   drug_targets(drug) = ()
               drug_targets(drug).append(target)
       return drug_targets


   def _find_disease_associated_genes(self) -> Dict(str, List(str)):
       """Find genes associated with diseases"""
       disease_genes = {}
       for rel in self.relationships:
           if (rel("type") == "associated_with" and
               self.entities(rel("target"))("type") == "diseases"):
               disease = self.entities(rel("target"))("name")
               gene = self.entities(rel("source"))("name")
               if disease not in disease_genes:
                   disease_genes(disease) = ()
               disease_genes(disease).append(gene)
       return disease_genes


   def _analyze_pathways(self) -> Dict(str, int):
       """Analyze pathway connectivity"""
       pathway_connections = {}
       for rel in self.relationships:
           if rel("type") in ("participates_in", "involved_in"):
               if self.entities(rel("target"))("type") == "pathways":
                   pathway = self.entities(rel("target"))("name")
                   pathway_connections(pathway) = pathway_connections.get(pathway, 0) + 1
       return dict(sorted(pathway_connections.items(), key=lambda x: x(1), reverse=True))


   def _analyze_network_centrality(self) -> Dict(str, Dict(str, float)):
       """Analyze network centrality measures"""
       if len(self.graph.nodes()) == 0:
           return {}

       centrality_measures = {
           "degree": nx.degree_centrality(self.graph),
           "betweenness": nx.betweenness_centrality(self.graph),
           "closeness": nx.closeness_centrality(self.graph)
       }

       top_nodes = {}
       for measure, values in centrality_measures.items():
           top_nodes(measure) = dict(sorted(values.items(), key=lambda x: x(1), reverse=True)(:5))

       return top_nodes


   def _find_entity_neighbors(self, entity_name: str) -> Dict(str, List(str)):
       """Find neighbors of a specific entity"""
       neighbors = {"direct": (), "indirect": ()}
       entity_id = None

       for eid, edata in self.entities.items():
           if edata("name").lower() == entity_name.lower():
               entity_id = eid
               break

       if not entity_id or entity_id not in self.graph:
           return {"error": f"Entity '{entity_name}' not found"}

       for neighbor in self.graph.neighbors(entity_id):
           neighbors("direct").append(self.entities(neighbor)("name"))

       for direct_neighbor in self.graph.neighbors(entity_id):
           for indirect_neighbor in self.graph.neighbors(direct_neighbor):
               if (indirect_neighbor != entity_id and
                   indirect_neighbor not in list(self.graph.neighbors(entity_id))):
                   neighbor_name = self.entities(indirect_neighbor)("name")
                   if neighbor_name not in neighbors("indirect"):
                       neighbors("indirect").append(neighbor_name)

       return neighbors


   def visualize_network(self, max_nodes: int = 30) -> None:
       """Visualize the knowledge graph"""
       print("📊 Creating network visualization...")

       nodes_to_show = list(self.graph.nodes())(:max_nodes)
       subgraph = self.graph.subgraph(nodes_to_show)

       plt.figure(figsize=(12, 8))
       pos = nx.spring_layout(subgraph, k=2, iterations=50)

       node_colors = ()
       color_map = {"genes": "red", "diseases": "blue", "drugs": "green",
                   "pathways": "orange", "proteins": "purple"}

       for node in subgraph.nodes():
           entity_type = self.entities(node)("type")
           node_colors.append(color_map.get(entity_type, "gray"))

       nx.draw(subgraph, pos, node_color=node_colors, node_size=300,
               with_labels=False, alpha=0.7, edge_color="gray", width=0.5)

       plt.title("Biomedical Knowledge Graph Network")
       plt.axis('off')
       plt.tight_layout()
       plt.show()

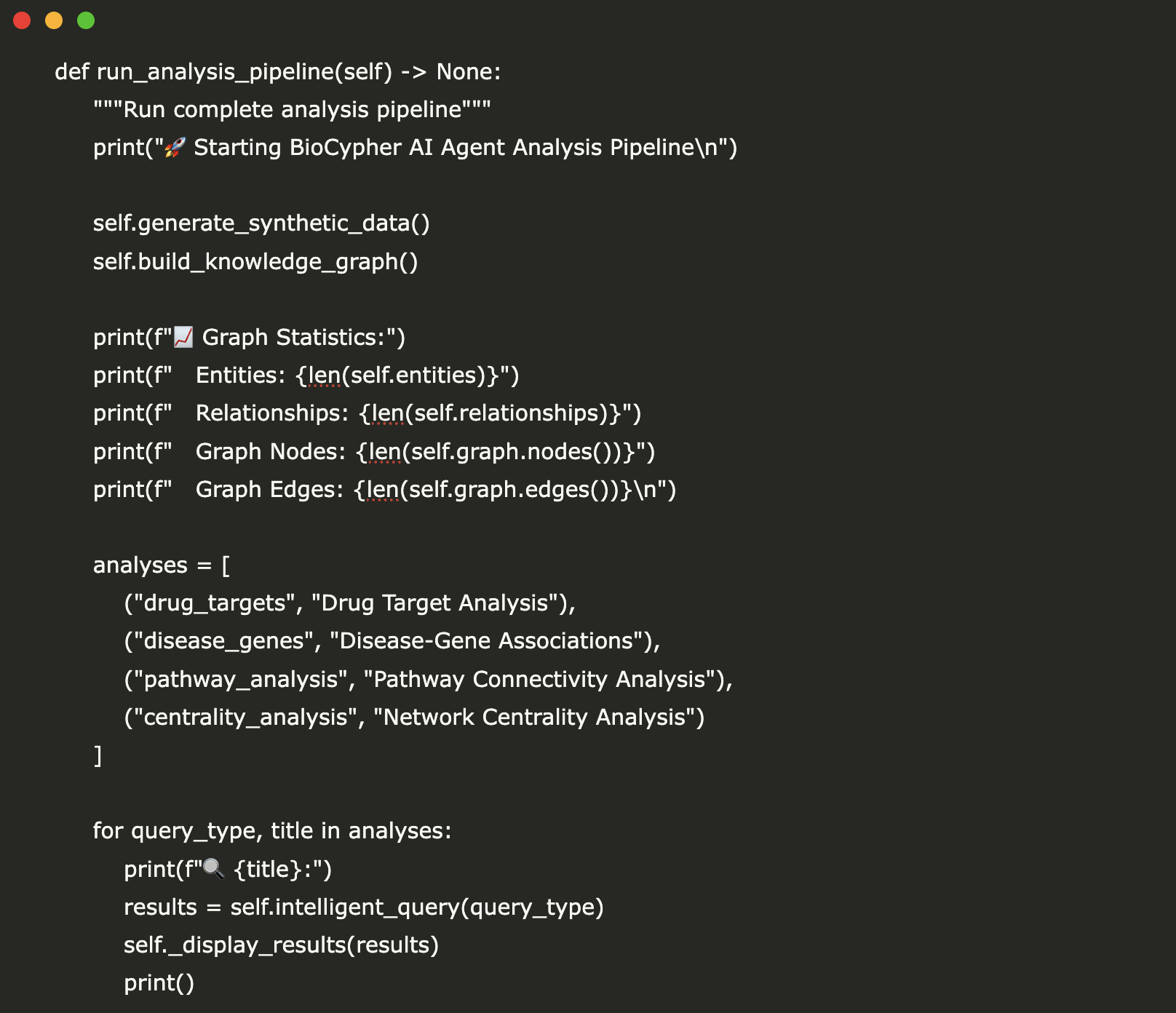

We have designed a set of intelligent functions within the biomedical class to simulate the biomedical scenarios of the real world. We generate realistic properties for each type of entity, define the types of biologically significant relations and build a structured knowledge graphic using Biocypher or Networkx. To obtain information, we have included functions to analyze drug targets, disease genes, the connectivity of the tracks and the centrality of the network, as well as an explorer of visual graphics which helps us to intuitively understand the interactions between biomedical entities.

  def run_analysis_pipeline(self) -> None:
       """Run complete analysis pipeline"""
       print("🚀 Starting BioCypher AI Agent Analysis Pipeline\n")

       self.generate_synthetic_data()
       self.build_knowledge_graph()

       print(f"📈 Graph Statistics:")
       print(f"   Entities: {len(self.entities)}")
       print(f"   Relationships: {len(self.relationships)}")
       print(f"   Graph Nodes: {len(self.graph.nodes())}")
       print(f"   Graph Edges: {len(self.graph.edges())}\n")

       analyses = (
           ("drug_targets", "Drug Target Analysis"),
           ("disease_genes", "Disease-Gene Associations"),
           ("pathway_analysis", "Pathway Connectivity Analysis"),
           ("centrality_analysis", "Network Centrality Analysis")
       )

       for query_type, title in analyses:
           print(f"🔍 {title}:")
           results = self.intelligent_query(query_type)
           self._display_results(results)
           print()

       self.visualize_network()

       print("✅ Analysis complete! AI Agent successfully analyzed biomedical data.")

   def _display_results(self, results: Dict(str, Any), max_items: int = 5) -> None:
       """Display analysis results in a formatted way"""
       if isinstance(results, dict) and "error" not in results:
           for key, value in list(results.items())(:max_items):
               if isinstance(value, list):
                   print(f"   {key}: {', '.join(value(:3))}{'...' if len(value) > 3 else ''}")
               elif isinstance(value, dict):
                   print(f"   {key}: {dict(list(value.items())(:3))}")
               else:
                   print(f"   {key}: {value}")
       else:
           print(f"   {results}")


   def export_to_formats(self) -> None:
       """Export knowledge graph to various formats"""
       if self.use_biocypher:
           try:
               print("📤 Exporting BioCypher graph...")
               print("✅ BioCypher export completed")
           except Exception as e:
               print(f"BioCypher export failed: {e}")

       print("📤 Exporting NetworkX graph to formats...")

       graph_data = {
           "nodes": ({"id": n, **self.graph.nodes(n)} for n in self.graph.nodes()),
           "edges": ({"source": u, "target": v, **self.graph.edges(u, v)}
                    for u, v in self.graph.edges())
       }

       try:
           with open("biomedical_graph.json", "w") as f:
               json.dump(graph_data, f, indent=2, default=str)

           nx.write_graphml(self.graph, "biomedical_graph.graphml")
           print("✅ Graph exported to JSON and GraphML formats")
       except Exception as e:
           print(f"Export failed: {e}")


   def export_to_formats(self) -> None:
       """Export knowledge graph to various formats"""
       if self.use_biocypher:
           try:
               print("📤 Exporting BioCypher graph...")
               print("✅ BioCypher export completed")
           except Exception as e:
               print(f"BioCypher export failed: {e}")

       print("📤 Exporting NetworkX graph to formats...")

       graph_data = {
           "nodes": ({"id": n, **self.graph.nodes(n)} for n in self.graph.nodes()),
           "edges": ({"source": u, "target": v, **self.graph.edges(u, v)}
                    for u, v in self.graph.edges())
       }

       with open("biomedical_graph.json", "w") as f:
           json.dump(graph_data, f, indent=2, default=str)

       nx.write_graphml(self.graph, "biomedical_graph.graphml")

       print("✅ Graph exported to JSON and GraphML formats")
       """Display analysis results in a formatted way"""
       if isinstance(results, dict) and "error" not in results:
           for key, value in list(results.items())(:max_items):
               if isinstance(value, list):
                   print(f"   {key}: {', '.join(value(:3))}{'...' if len(value) > 3 else ''}")
               elif isinstance(value, dict):
                   print(f"   {key}: {dict(list(value.items())(:3))}")
               else:
                   print(f"   {key}: {value}")
       else:
           print(f"   {results}")

We conclude the workflow of the AI ​​agent with a rationalized function run_analysis_pipeline () which links everything together, from the generation of synthetic data and from the construction of graphics to the execution of the intelligent request and to the final visualization. This automated pipeline allows us to observe biomedical relations, to analyze central entities and to understand how the different biological concepts are interconnected. Finally, using export_to_formats (), we make sure that the resulting graph can be saved in JSON and GRAPHML formats for subsequent use, which makes our analysis both shareable and reproducible.

if __name__ == "__main__":
   agent = BiomedicalAIAgent()
   agent.run_analysis_pipeline()

We conclude the tutorial by installing our biomedical and executing the complete analysis pipeline. This entry point allows us to execute all the steps, including the generation of data, the construction of graphics, the intelligent request, the visualization and the reports, in a single rationalized command, which facilitates the explore of biomedical knowledge using the biocyphere.

In conclusion, thanks to this advanced tutorial, we acquire a practical experience by working with Biocypher to create graphics of evolutionary biomedical knowledge and carry out insightful biological analyzes. The double -mode support guarantees that even if Biocypher is not available, the system graciously resumes Networkx for a full functionality. The possibility of generating sets of synthetic data, executing intelligent graph's requests, visualizing relationships and exporting in several formats presents the flexibility and analytical power of the biocyph -based agent. Overall, this tutorial illustrates how the biocyphe can serve as a critical infrastructure layer for biomedical AI systems, which makes complex biological data usable and insightful for downstream applications.


Discover the Codes here. All the merit of this research goes to researchers in this project. Also, don't hesitate to follow us Twitter And don't forget to join our Subseubdredit 100k + ml and subscribe to Our newsletter.


author profile Sana Hassan

Sana Hassan, consulting trainee at Marktechpost and double -degree student at Iit Madras, is passionate about the application of technology and AI to meet the challenges of the real world. With a great interest in solving practical problems, it brings a new perspective to the intersection of AI and real life solutions.

a sleek banner advertisement showcasing

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
